Our eHouse solutions are designed to accommodate a wide range of electrical equipment as Transformers, Medium Voltage (MV), Low Voltage (LV), Motor Control Centers (MCCs), Control Systems, and etc.
Additional service
As an additional service, we can install switchgear and electrical equipment directly within the shelters, including all necessary internal cabling between components.
We also offer full pre-commissioning of the integrated system at our facility, ensuring a ready-to-operate solution upon delivery.

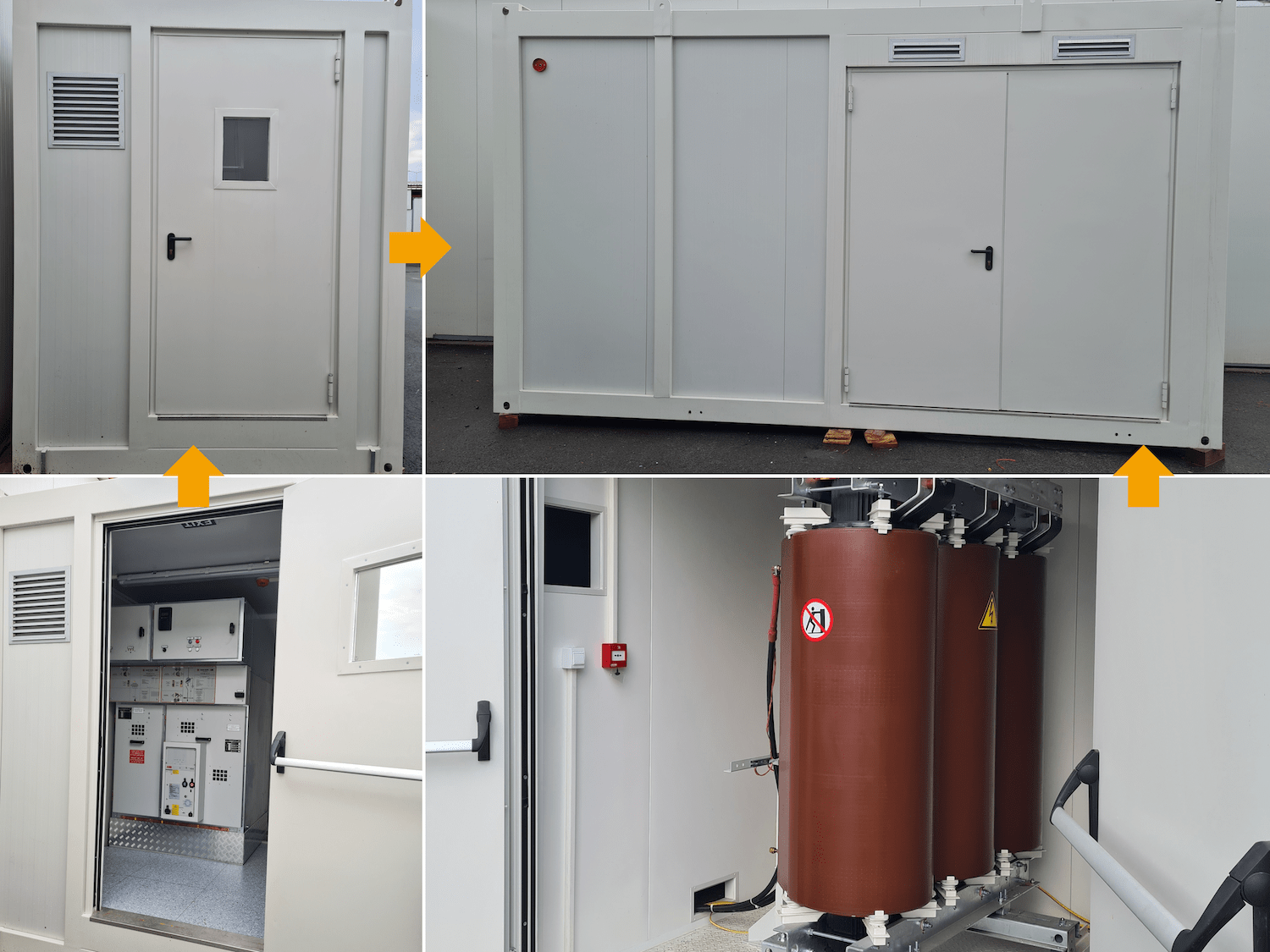

Shelter with 10kV MV switchboard and 10/0.4kV transformer

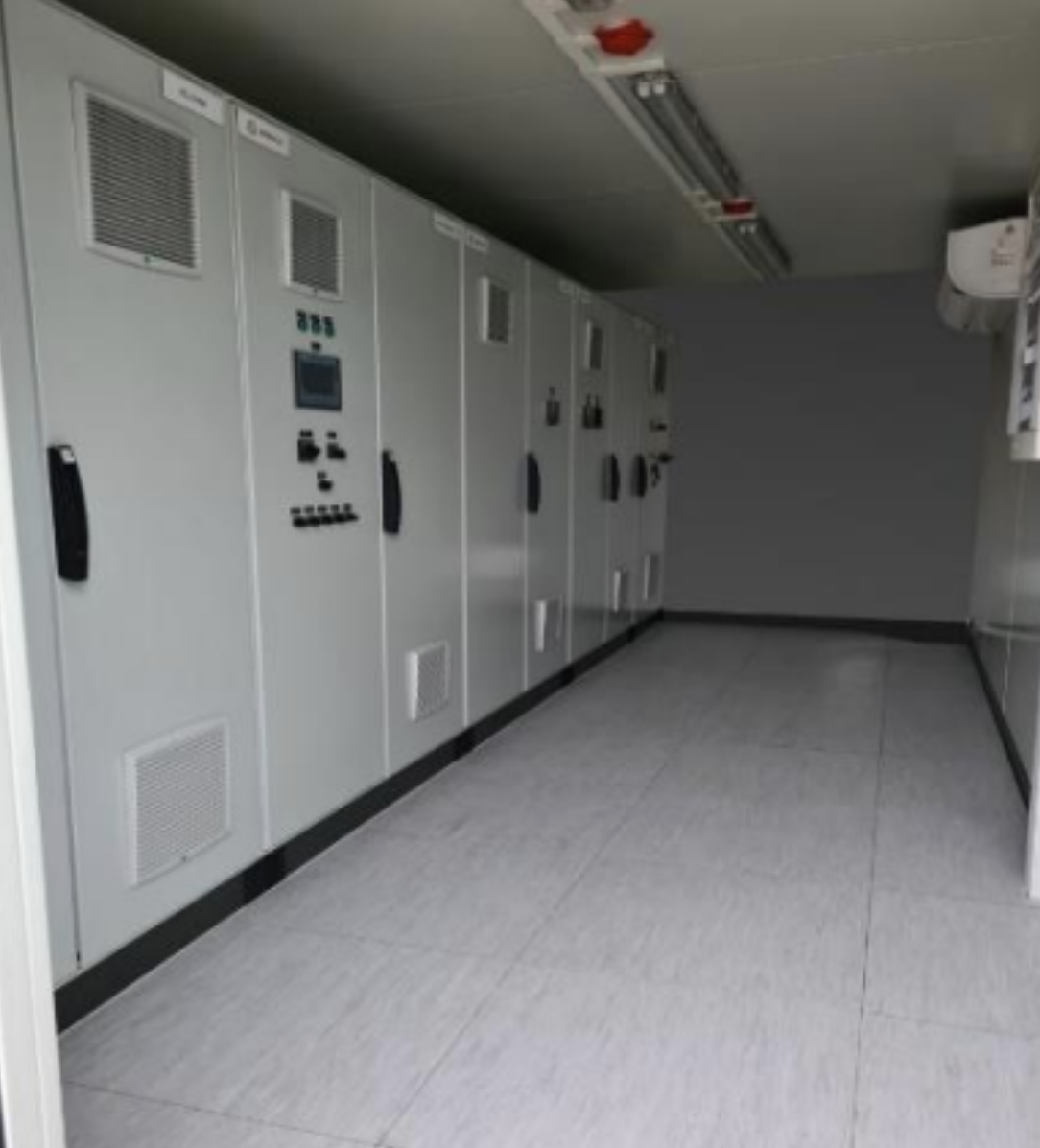

eHouse MCC shelter with 1.5 MW install power
eHouse-MCC
Technical Specifications
| FEATURES | DESCRIPTION |
|---|---|
| Mechanical Strength | Designed to carry heavy loads up to 40t |
| MV System | We can install MV switchgear up to 35kV |
| TS Station | Installation of dry or oil type transformers up 2500kVA. Bigger ones upon request |
| Oil Dispencer | Transformer station for oil type transformer comes with oil dispenser |
| Busbar support | Each container comes with busbar support for installation of Canalis or similar prefabricate busbar system |
| Dimensions | Flexible in dimensions, according to customer request |
| Steel Support | Custom built steel support for installation of electrical panels |
| Environment Protection | Tankvane (floor tank) for oil type transformers |
| Corrosion Protection | From C1 to C5M (marine applications) |
| Arc Protection | Technical shelters are designed with arc relief for MV |
| Raised Floor | 600x600mm panels made out of calcium sulfate or chip board |
| Cable Entry | Through cable glands, Roxtec or similar |
| HVAC | Dust suppression with pressurization and air conditioning (industrial and commercial type) |
| Explosive Atmosphere | Technical shelters can be designed according to ExP requirements |
| Fire Resistance | Technical shelters can be resistant up to EI – 90 |
| Fire detection | Smoke, gas detection, heat detection and alarm system |
| Fire Suppression | Fire suppression available in various type and forms depending on the request |
| Doors | Steel/aluminum, with panic handle, fire proofed |
| Standards | IEC, GOST, UL, Ex |
