Our solution for Data center (DC) container is available as ISO-container in a 20 ft and 40 ft (with our redesign and modification) or as tailor made available with adjustable height (H), width (W) and depth (D). Additionally, they provide the opportunity to combine several containers for even more data center space.
The benefits of the mobile DC Container
DC TContainer is a plug & play solution: Quickly connected to the power supply after the delivery, it is ready for operation. The time between order and initial operation is significantly shorter than for a conventional data center. There are no on site adjustments necessary – there just has to be enough space for the respective statics of the container.
The DC-Container protects from dust, debris, fire, rain, extinguishing water and unauthorized access. The use is so flexible that you can put it inside or outside or shift quickly from one to the other, whichever way you need it.

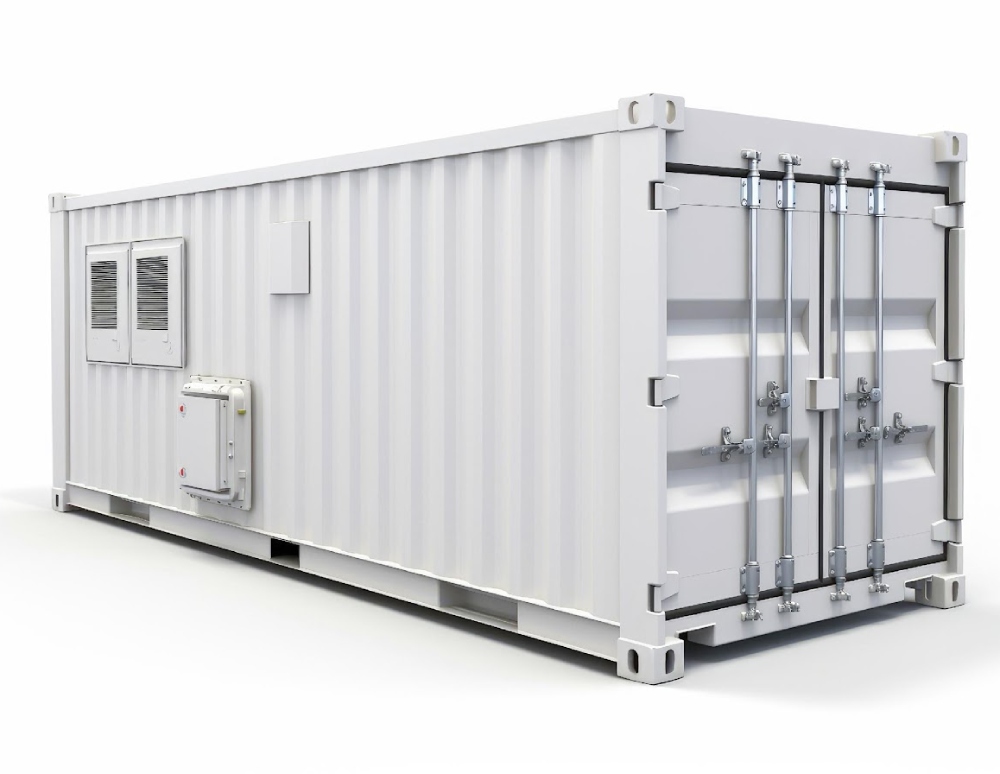

ISO DC container

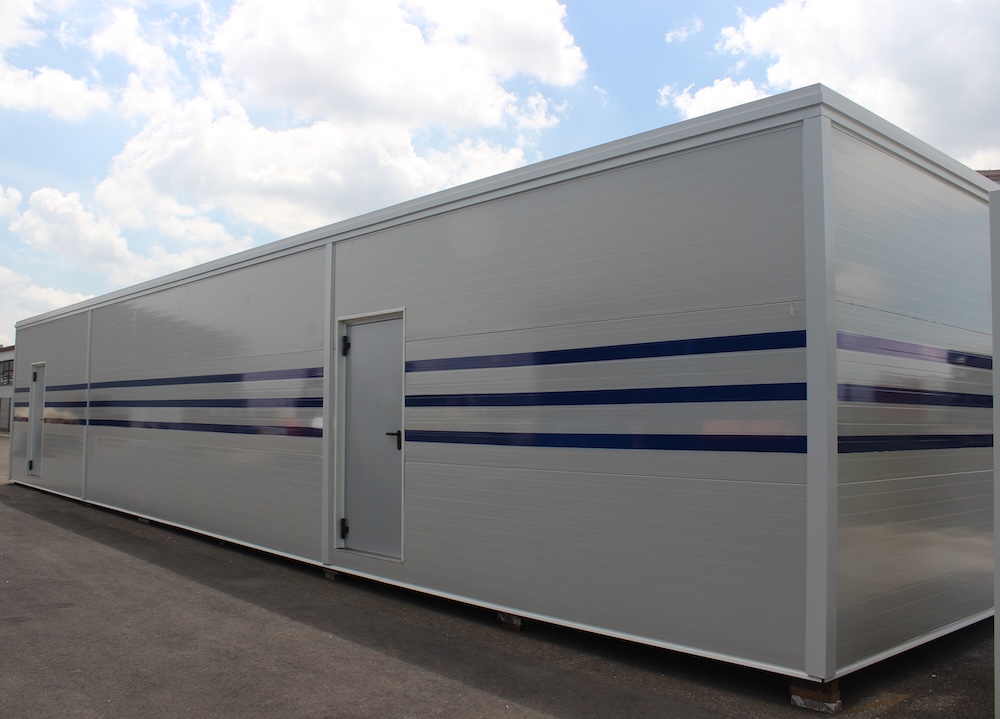

Tailor made DC Container
Equipment and options of the DC-Containers
Both, ISO and tailor made container contain an integrated fire door with smoke protection and burglary protection as well as an access control.
Inside the Container are 19“-racks and 19“ UPS-systems, protected by early fire detection and a fire extinguishing system and they are cooled by a redundant Inverter.
The container’s floor is available including a dissipative rubber-coating or as a raised floor.
Technical Specifications
| FEATURES | DESCRIPTION |
|---|---|
| Rack Installation | Easy and flexible installation of rack system |
| Cooling | Cold and hot air circulation |
| Flexibility | Fixed and Mobile appications. Data centers can be moved around. |
| HVAC | Air conditioning (industrial and commercial type) |
| Dimensions | Flexible in dimensions, according to customer request |
| Fire Resistance | Technical shelters can be resistant up to EI – 90 |
| Fire Detection | Smoke, gas detection, heat detection and alarm system |
| Fire Suppression | Fire suppression available in various type and forms depending on the request |
| UPS | Available in various sizes and types |
| Power Distribution | Complete electrical installation including power supply, cables, cable trays, etc |
| Smart Conditioning | Online monitoring and control of room adjustments according to temperatures, humidity, etc. |
| Corrosion Protection | From C1 to C5M (marine applications) |
| Cable Entry | Through cable glands, Roxtec or similar |
| Burglary Protection | According to RC2 or RC3 standard |
